Product Description

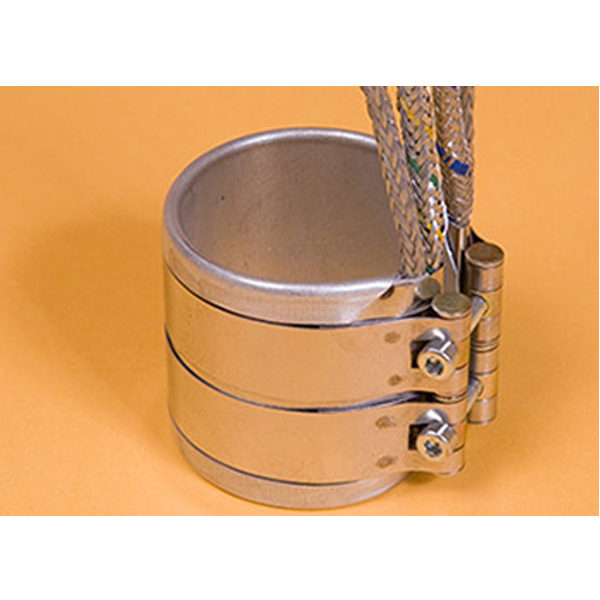

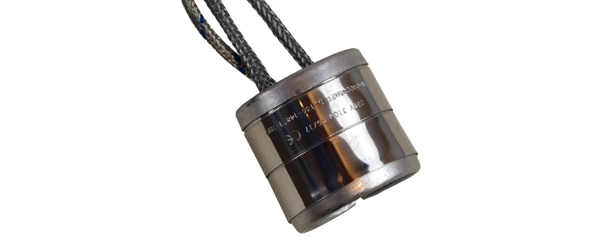

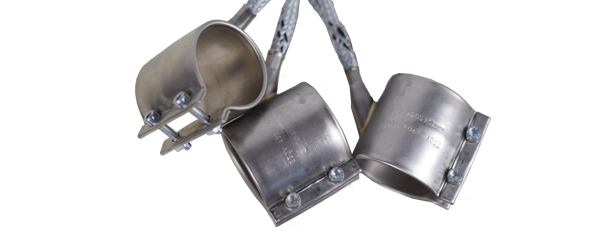

Z15 nozzle band heaters are usually employed
when the space around the nozzle is limited
(hotrunners) and also in case of plastic corrosive
action (i.e. PVC and other materials like PEEK, ABS
and PTFE with flame retardant).
The electric connection between the heater and the
feeding cables is inteerated into the internal heating element. A special manufacturing tecnique of
the casing allows an excellent connection with the
leads.
l Specific wattage up to 7 W/cm2
l Working temperature 350/370° C

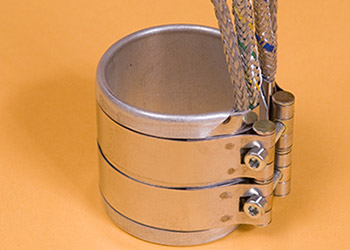

l Available, upon request with built in thermocouple FeCU Ni (type J)
l Max diameter ØD 110 mm, max width L 200 mm
l Feeding lead length over 1000 [mm], upon
request
l Standard feeding voltage 230 V
l Different voltage and wattage upon request
Material
l High thermal conductivity steel casing
l Ni-Cr 80/20 wire
l Continuos mica insulations
l Flexible bipolar feeding lead
l Teflon fibreglass insulated nickel conductors with
metal braiding protection
