Product Description
Electric Tube Heater Components

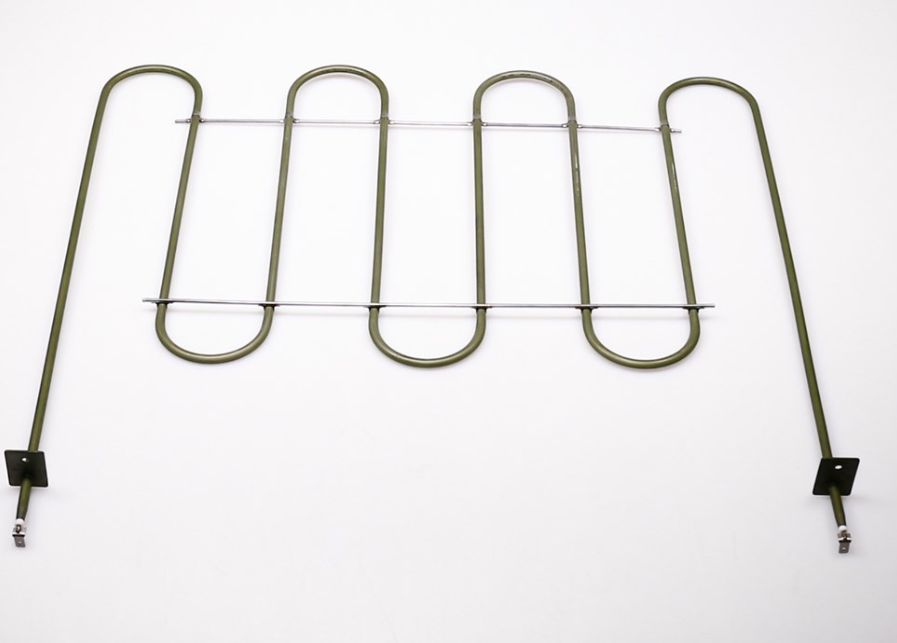

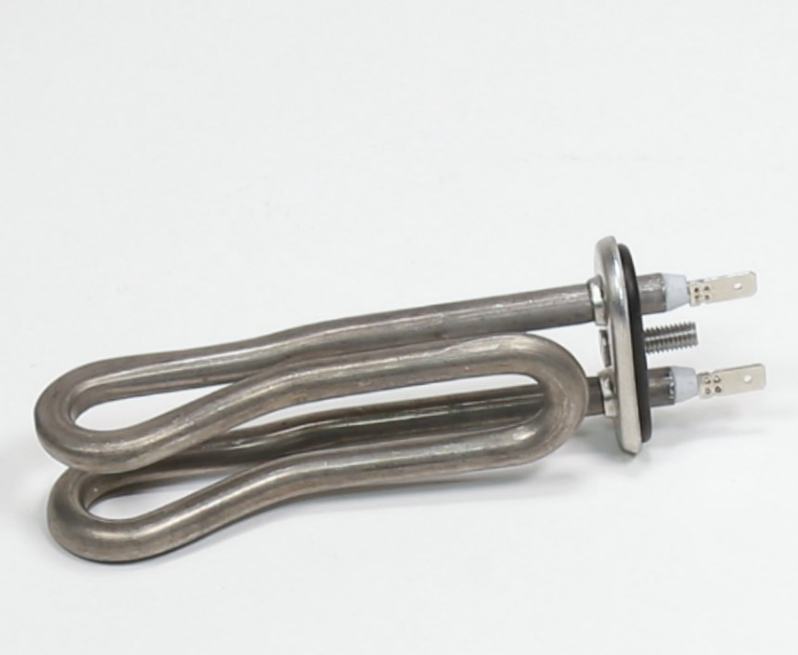

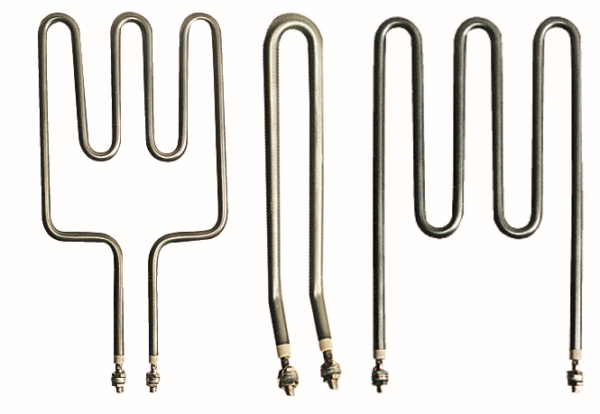

Tube boilers are designed in a variety of shapes to meet the needs of the customer for direct immersion in liquids such as water, oils, solvents and processing solutions, as well as melting materials as well as air. and gas.
Tube heaters are manufactured using Incoloy, stainless steel or copper sheath material and there are also a variety of different types of termination options available.
Magnesium insulators provide better heat transfer. Tubular heaters can be used in any application.
Straight tubes can be inserted into the machining centers for heat transfer and Tubular Forming that provide consistent heat in any kind of special application. Its application fields are: Plastic Processing Machinery, Technical Industry, Packaging Machinery, Shoe Making Machinery Foundry, Radiant Surface Heater, Hot Runner Molding Systems etc.
Features, characteristics
Check HI-POT 1500V / S min cold condition
20M Ω min
Maximum leakage current 0.75ma
Load capacity + 5%, – 10%
Voltage 120V-440V
Diameter range 1mm to 40mm
2080 Ni Resistance Thermocouple Wire or according to customer requirements
Hot air furnace ≥ 2w-4w / cm2
Hot water tube tubing ≥ 6w-10w / cm2
Gutter and tubular hot water pipe ≥ 8W-12w / cm2
Benefits of hot tub:
1. Available in a variety of shells, diameters, and ratings;
2. Suitable for insulated enclosures;
3. Provide superior internal insulator and thermal conductivity;
4. Easy to install;
5. Can configure almost any shape;
6. reasonable size;
7. Precise and easy control of heat output;
8. Durability;
9. Easy to maintain;
10. Easy to replace so eliminates long closing times;
Application
Plastic processing machine.
Water and oil heating equipment.
Packing machine
Vending machines.
Death and tools.
Chemical Heating Solutions.
Oven & Dryer
Kitchen equipment
Medical equipment
Used in many other applications.
When you place the hot tube, please note the following specifications:
1, if there are drawings, will be very useful
2, power, voltage, shape
3, the working temperature
4, material requirements
5, the number
6, Othe mandatory requirements.
