Product Description

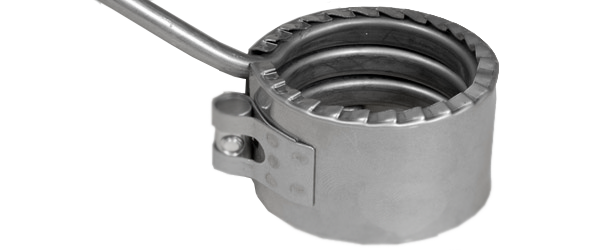

Z. 122 nozzle band heaters are the confirmation in
this field of our step forward to the future.
In fact, the technical features of these new heaters
are better than the ones commonly used. Built with
a rectangular tube (mm 8.6 x 4.6), they give an
excellent guarantee of mechanical resistance
against impacts and knocks as well as safety when
using tools during maintenance operations.
Z. 122 nozzle band heaters are totally protected
from the plastic corrosive action and are
hermetically sealed from liquid plastic.
Their rectangular shape with a 8.6 mm long side,
acting as heat dissipator, allows us to reach the
highest thermal exchange with the nozzle.
l Stainless steel tube mm 8.6 x 4.6
l Cold end 65 mm
l Specific wattage up to max. 15 W/cm2
l Working temperature max 750° C
l Available, upon request, with built-in thermo
couple Fe/Co (tipo J) oppure NiCrNi (K)
l Min. diameter ØD 20 mm, max. diameter ØD 100
mm, max. straight lenght L 3000 mm
l Min. bending radius 10 mm
l Feeding lead lenght over 1000 mm, upon request
l Standard model with axial exit 45°
l Available, upon request, radial exit, or tangential
exit 45° or 5°, or axial exit 5° or 30°
( vedere pag. 17 )
l Standard feeding voltage 230 V
l Available, upon request, different voltages up to
max 440 V
Material
l CrNi-steel tube
l Ni-Cr 80/20 wire
l Highly compressed MgO insulation
l Flexible bipolar feeding lead + earth wire
l Teflon insulated nickel conductors, with metal
braiding protection
l Stainless steel clamping band
